Cloud Point RPC

Communication JSON RPC protocol and implementation with Unity Scene.

Project Structure

• include/: Header files for the RPC server, TCP server, and C-API.
• src/: Implementation of the RPC logic, networking, and C-API.
• src/cloud_point/: OpenCV-based image processing and rectification logic.
• docs/: Documentation diagrams and models.
• subprojects/: Dependencies managed by Meson.

Status

• Server implementation with C-API for Unity
• Basic OpenCV image processing (Rectification, Image wrapper)
• Full OpenCV client implementation

API Documentation

See API.md for detailed request/response formats.

Development

The project uses Meson build system and C++20.

Dependencies

• Meson (>= 1.1.0), Ninja
• GCC/Clang (C++20 support)
• Git (for subprojects)
• OpenCV (for cloud point compute)

The following dependencies are managed via Meson subprojects:

• ASIO (Networking)
• nlohmann/json (JSON serialization)
• yaml-cpp (Configuration loading)
• glog (Logging)
• jsonrpccxx (JSON-RPC 2.0 implementation)
• stdexec (P2300 Senders/Receivers)

Build & Run

meson setup build
meson compile -C build
./build/src/cloud_point_rpc_server config.yaml

Note: You need a config.yaml file. See config.yaml.example for the required format.

Build on windows

It's assumed that you have GCC and make/ninja installed on your system (and available in PATH)

## FIRST OF ALL!
git submodule init
git submodule update
# Next python:
python3 -m venv .\venv
.\.venv\Scripts\Activate.ps1
pip install meson cmake
meson setup -Ddefault_library=static build
meson compile -C build
# To correctly get dlls:
meson devenv -C build
## .\build\tests\unit_tests < for dummy test
## .\build\src\.. < produced execs and libs

Testing

meson test -C build -v

Docker

You can build and run the cli using Docker.

1. Build Image

docker build -t cloud-point-rpc .

2. Run Container

The cli will try to connect to a running server on ip and port defined in config.yml file. (defined in config.yaml inside the image). For simplicity, it's better to use a host network, so you will not have any headache with accessability.

Server is not configured to run through container, if you need, contact me

You also can mount your own config.yaml to override the default settings:

docker run --network=host -it -v $(pwd)/my_config.yaml:/app/config.yaml cloud-point-rpc

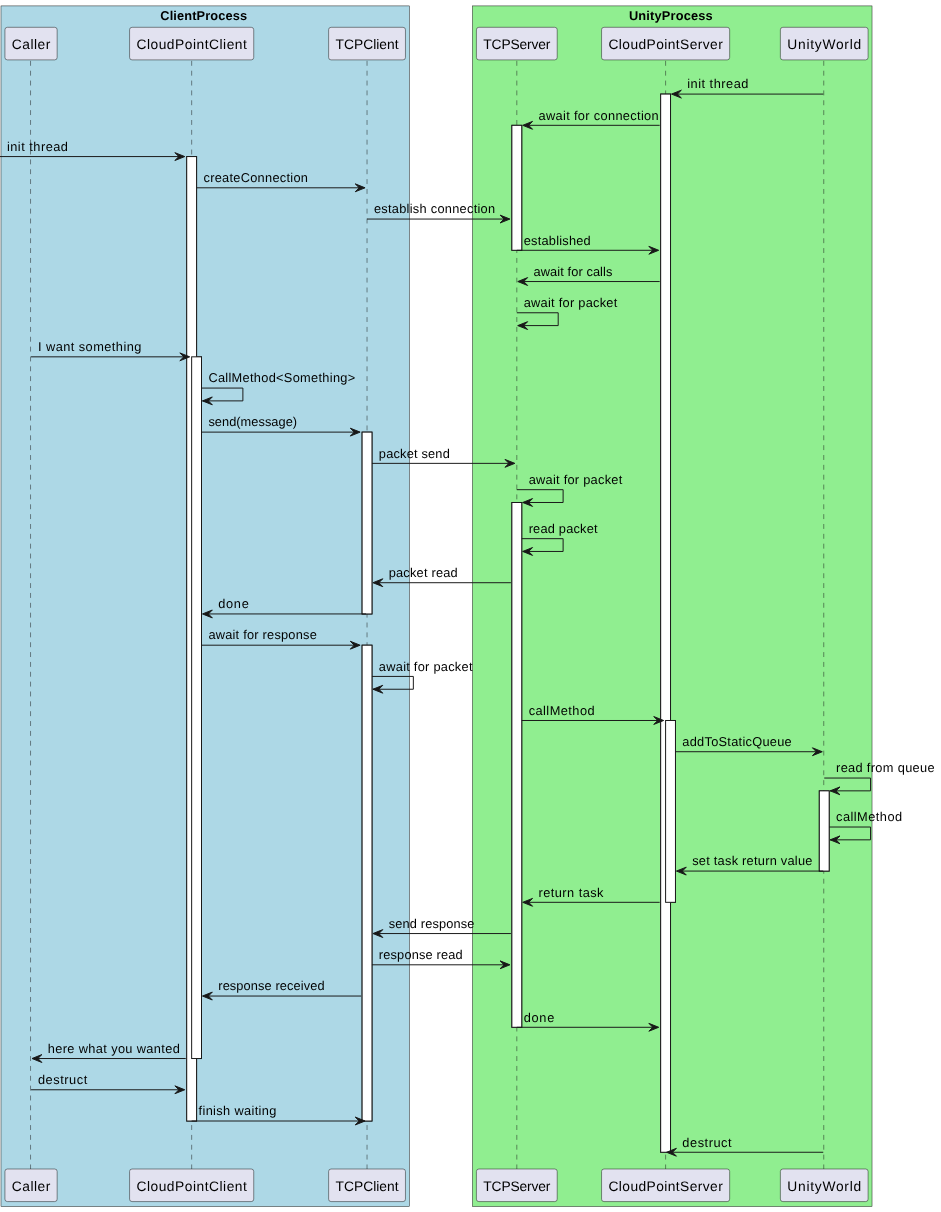

Communication model
